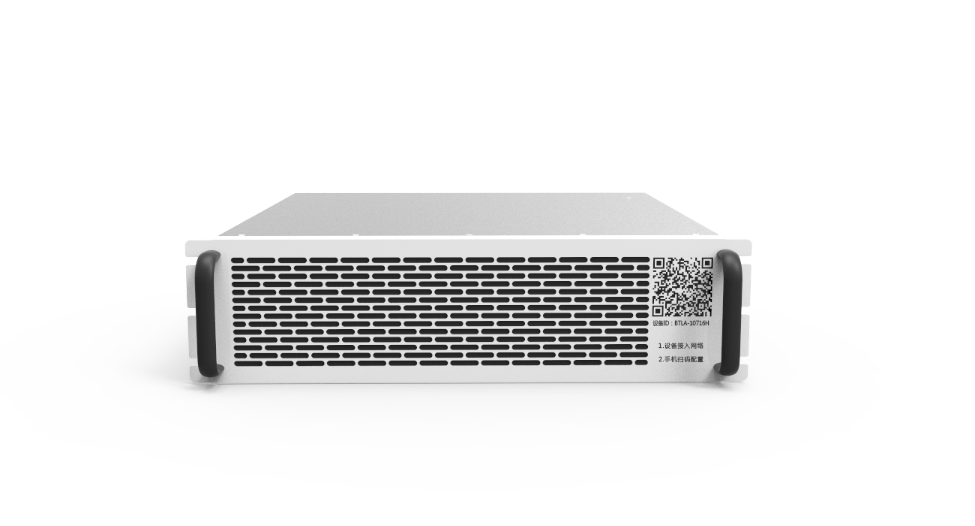

80 kW Bidirectional AC / DC Power Module For Microgrid And Energy Storage System

Shenzhen Acadie New Energy Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

80 kW Bidirectional AC / DC Power Module For Microgrid And Energy Storage System

Brand Name : ANE

Model Number : BTLA-PMA080-A011-HL

Place of Origin : China

MOQ : 5

Price : Exwork: 2,000~5,000 USD

Payment Terms : T/T

Supply Ability : 2000 Per month

Delivery Time : 45 Work days

Packaging Details : Carton Box

Wiring system : Three phase five wire system

Rated voltage : AC380V/400V

Rated power : 80kW

AC Current range : ±123A

Rated frequency : 50Hz/60Hz

voltage range : DC680V~DC1000V

DC Current range : ±118A

Voltage error : ≤1%

Current error : ≤1%

Off-grid/grid-connected switch : Built-in

Forward and reverse switching time : <10ms

Off-grid/grid-connected switching time : <10ms

Peak efficiency : 98.6%

Overload capability : 1.1 times ≥ 10min, 1.2 times ≥ 1min

Contact Now

80 kW AC / DC Bidirectional Power Module For Microgrid And Energy Storage System

Technical parameter

Model BTLA-PMA080-A011-HL
AC side parameters
Wiring system Three phase five wire system
Rated voltage AC380V
Rated power 80kW
Voltage range AC380V±15%
Current range ±123A
Rated frequency 50Hz/60Hz
Frequency range 50/60Hz±5Hz
Power factor adjustment range ±1
Harmonic content THDi ≤3%
DC side parameters
voltage range DC680V~DC1000V
Current range ±118A
Voltage error ≤1%
Stabilized voltage precision ≤1%
Current error ≤1%
Stabilized current precision ≤1%
Voltage limiting characteristic Yes
Current limiting characteristic Yes
Basic characteristics
Off-grid/grid-connected switch Built-in
AC and DC starting capability Support
Forward and reverse switching time <10ms
Peak efficiency 98.6%
Overload capability 1.1 times ≥ 10min, 1.2 times ≥ 1min
Off-grid/grid-connected switching time <10ms
Operating temperature -20℃~+45℃(above +45℃ power derating)
Working humidity ≤95%RH,no condensation
storage temperature -40℃~+55℃
Storage humidity 0 ~ 95%RH
Cooling method Intelligent forced air cooling
Altitude 3000m
Communication RS485,CAN, Ethernet, Dry contact
Island protection Support
Protective characteristic Multiple safety protection, AC and DC over and under voltage protection, over current protection, short circuit protection, DC reverse protection, AC phase sequence protection, over temperature protection, fan abnormal detection, etc.
Protection level IP20
Noise <70dB
Weight 32kg
Size ( H*W*D ) 129*443*470mm

All performance and parameters shall be subject to the latest confirmation of our technical department.

Product introduction

This 80kW AC/DC bidirectional energy storage converter adopts modular design, uses advanced control algorithm to realize multi-machine parallel, and the power level of the parallel system covers 80kW ~ 1MW. The module has both local monitoring and EMS system remote scheduling functions, with excellent load adaptability and power grid adaptability, while the independent air duct design makes it effectively cope with a variety of complex application environments, the system is safer, more reliable, economic, environmental adaptability.

Features

High efficiency

  •  PF value is ±1 on AC side, improve load capacity
  •  Our patent technology was adopted to realize energy bi-directional flow
  • Seamless forward and reverse switching
  •  High dynamic response, full load switch time as low as 10 ms
  •  Output of wide voltage range, high precision, fast dynamic response

Safety

  • High reliable protection performance, resistance to high and low temperature,humidity, salt spray and other harsh environment
  • The staggered parallel technology, reduce the ripple current
    • Multiple security protection, input over/under-voltage protection, Output anti-reverse connection, short circuit protection, over temperature protection, fan anomaly detection, etc
  • Low standby loss

Intelligence

  • Multi-dimensional intelligent fan control technology, reducing power consumption and noise
  • DSP design and realize the full digital control
  • Can directly interact with the battery BMS
  • External interface is rich, cooperating with isolation transformer access

Convenient

  • Modular design, easy to maintain, and support parallel expansion
  • High power density, small volume, light weight
  • With on-grid/off-grid switch function
  • Support module networking, mobile phone operation control, simple and intuitive
